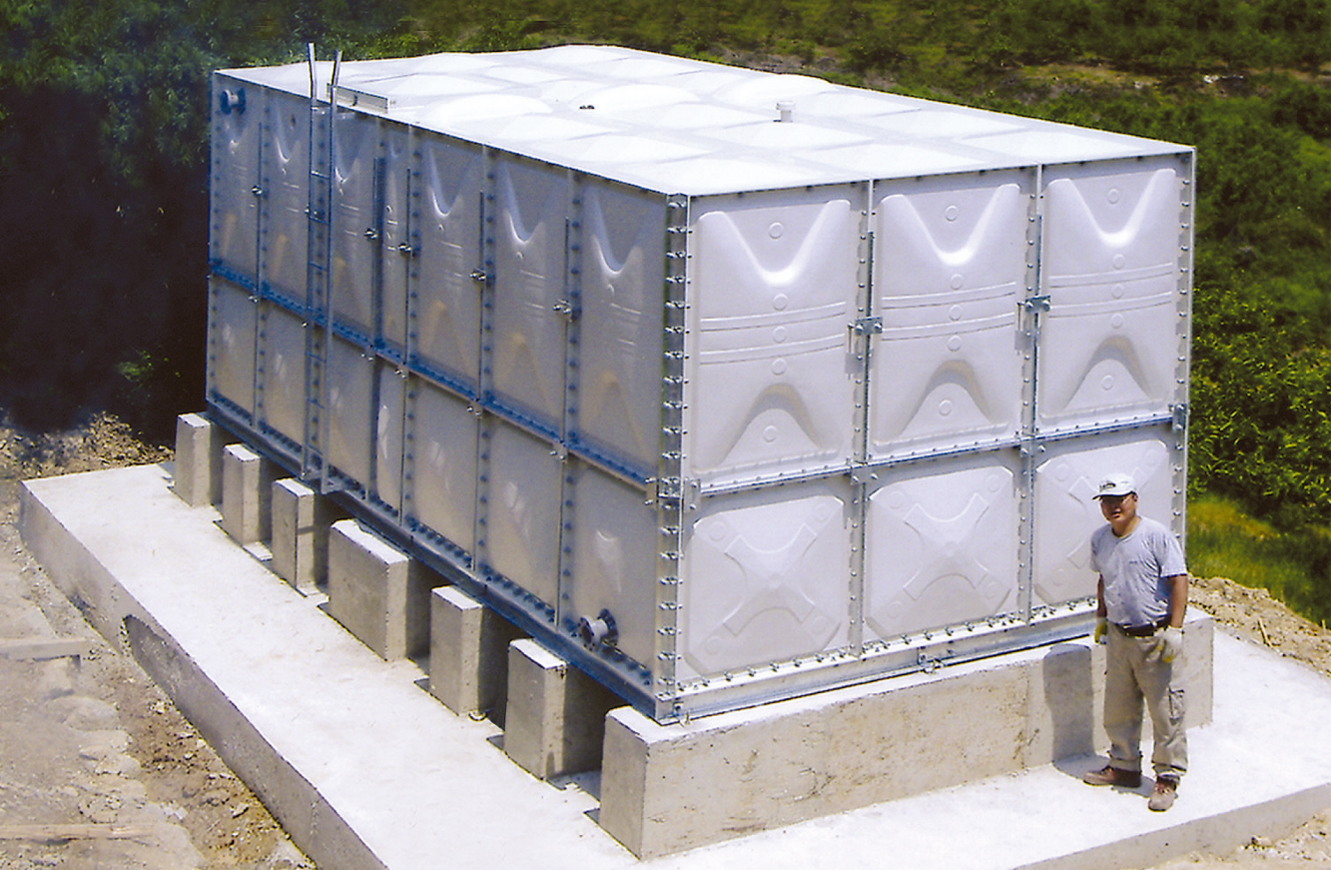

Installation Conditions and Design Standard of Sectional GRP Water Tank

Intensity and Endurance

Section	Design Standard
Hydrostatic Pressure	Water pressure enforcement 6 times standard Transfomation rate in filled up with water : Less than 1% form Water tank Height
Wind Force	Less than 60m/sec
Earthquake Force	- Horizontal Intensity kh = 1/3G
Snow load	200Kg/m² , Snow fall less than 1M
llumination Rate	Less than 1%
Out-fit Force	No leakage under condition of vertical 100Kg after install of 100A Fitting
Water Temperature	Usable temperature : Under 50℃ Limited temperature : Under 50℃

Range

Section	Available Design Conditions
Height	1.0 ~ 5.0 M
Capacity	1 ~ 3,000 ton
shape	Square, shape, Shape, Shape etc.

Thermal Conductivity

Goods/Item	Thermal Conduction Kcal/mhr ℃
	Non - Insulate Type	Insulation Type
Steel, STS	37	37
GRP	0.15 (Over 370 times)	0.017
